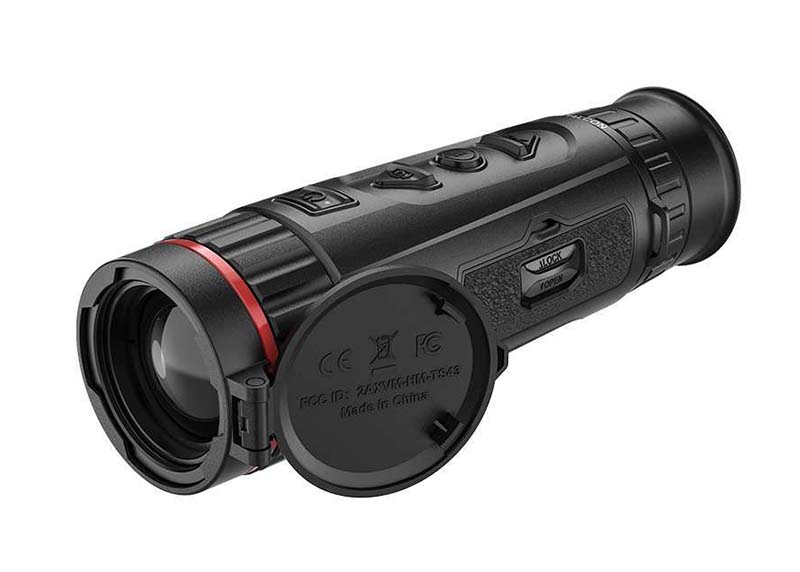

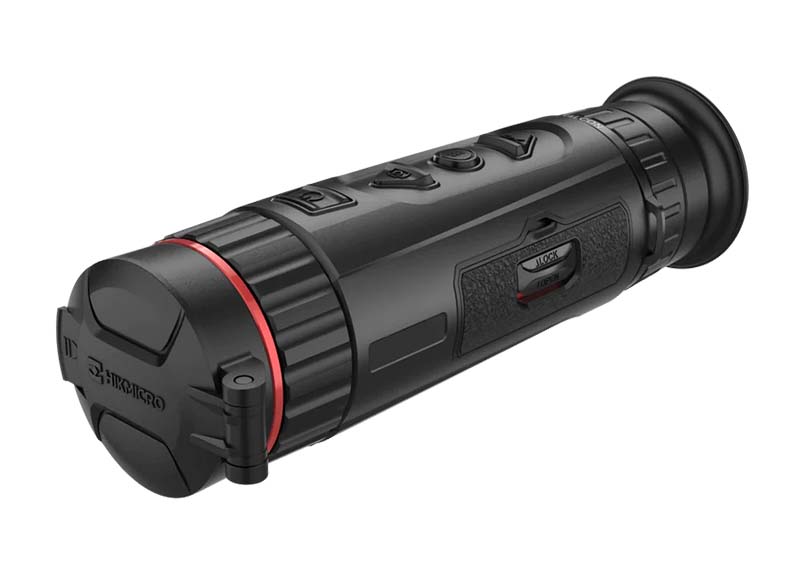

The HIKMICRO Falcon 25mm Thermal Monocular (FH25) is a highly sensitive, highly practical, and extremely simple-to-use handheld IR imager.

It provides sharp, richly contrasted, precisely detailed thermal images and footage. As such it offers a <20mK thermal sensitivity and 1800m detection range and is equipped with a high-end 12µm 384 x 288px thermal sensor, f/1.0 aperture lens, and Image Pro image processing algorithm. In addition to this, it includes useful imaging functions such as an 8x digital zoom, four thermal colour palettes, and a Hot Tracking mode.

Imaging can be viewed on the 1024 x 768px HD OLED display and may be saved as thermal videos and photos to the integrated 64GB memory. Media can be exported to the HIKMICRO Sight App.

To ensure simple, dependable, and constant operation, the HIKMICRO Falcon 25mm Thermal Monocular features a cylindrical design with conveniently located different-shaped function buttons; a robust, IP67 waterproof-rated magnesium housing; and a replaceable, rechargeable battery.

The HIKMICRO Falcon FH25 Thermal Monocular is an ergonomic, easy-to-use handheld infrared imager designed to deliver detailed, ultra-clear thermal images and footage in all weather conditions.

What’s Included?

• Cleaning Cloth
• 2x Batteries
• Charger
• USB Cable
• Wrist Strap
• Neck Strap
• Protective Bag
• Carrying Case
• Quick Start Guide

HIKMICRO Falcon FH25 Thermal Monocular Key Features:

• A handheld infrared-imager
• Ergonomic, easy to use, and designed to deliver detailed, ultra-clear thermal images and footage
• Thermal sensitivity: <20mK
• TCR vanadium oxide thin film material
• High-end 12µm thermal sensor with a 384 x 288px resolution
• Image Pro image processing algorithm
• Long detection range: up to 1800m
• 8x digital zoom
• Four thermal colour palettes
• Hot tracking mode
• Full colour 1024 x 768px HD OLED display
• Photo/Video Recording function with a built-in 64GB memory
• Compatibility with the Hikmicro Sight App for sharing images and footage
• Cylindrical shape enables one-handed operation
• Suitable for right- and left-handed users
• Conveniently placed buttons
• Different shaped buttons for quick and easy identification of functions while wearing gloves and/or in the dark
• Soft, skin-friendly material for a better feel
• Robust magnesium housing
• IP67 waterproof-rated
• SDLC coating on the lens
• Replaceable, rechargeable high-capacity battery provides six hours of operation
• An ordinary power bank may be connected via a type-C interface for use as an external power supply
• A highly sensitive, highly practical, and extremely simple-to-use handheld IR imager

HIKMICRO Falcon 25mm Thermal Monocular Specifications:

Thermal Module

• Image Sensor – VOx Uncooled Focal Plane Arrays
• Frame Rate – 50Hz
• Pixel Interval – 12µm
• Response Waveband – 8µm to 14µm
• NETD – Less than 20 mK (@25°C),F#=1.0
• Detection Range – 1200m
• Field of View(H x V) – Degrees / m @100m 10.5°x7.9°/18.4mx13.8m
• Min. Focusing Distance – 2.5m
• Aperture – F1.0
• Digital Zoom – 1x, 2x, 4x, 8x
• Focal Length – 25mm
• Resolution – 384 x 288
• Optical Magnification – 2.17

Image Display

• Palettes – Black hot, white hot, red hot, fusion
• FFC (Flat Field Correction) Model – Auto, Manual, External Correction
• Monitor – 0.39 inch, OLED, 1024 x 768

General

• Protection Level – IP67
• Weight – 450g without battery
• Dimensions – 190.3 mm x 58.3mm x 65.2 mm
• Work Temperature/Humidity – From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less

System

• Record Video – Yes
• Capture Snapshot – Yes
• Hotspot – Yes
• Standby Mode – Yes
• Storage – Built-in memory module (64 GB)
• Hot Track – Yes

Power Supply

• Power – 5V, 1.5W
• Battery Type – Replaceable and Rechargeable Li-ion Battery
• Battery Operating Time – 7 hours of continuous running with CVBS and hotspot function off (@25°C)
