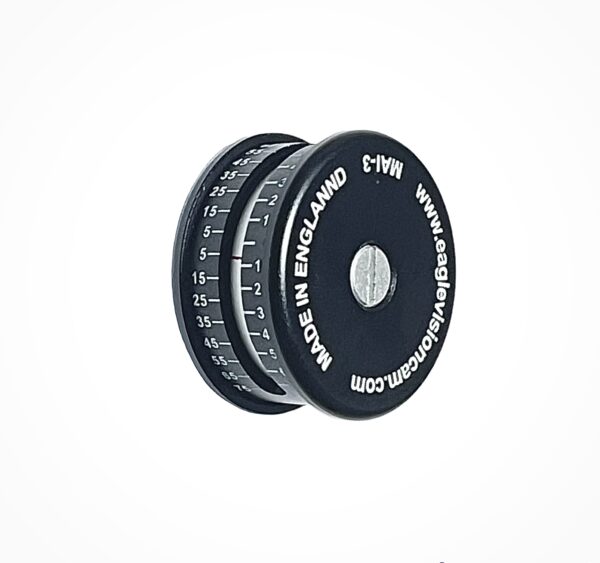

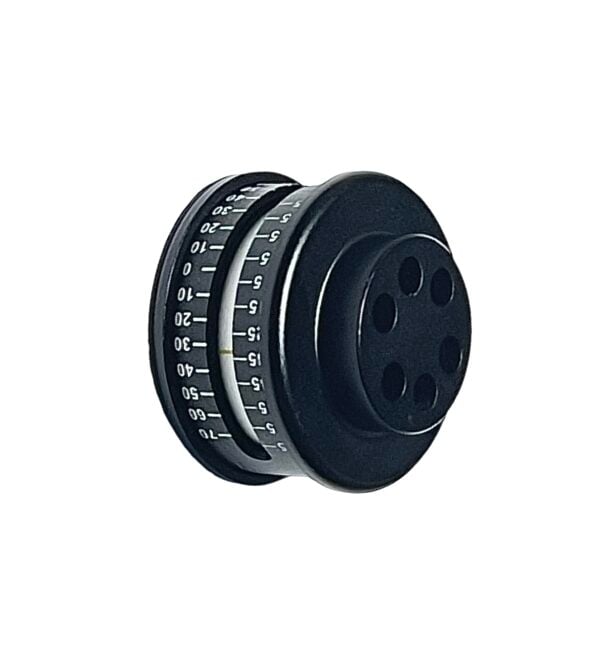

Angle Degree Indicator

This unit is designed to fitted directly on the left or right of the scope mount & scope rails – no additional bracket is required. The ‘Angle Degree Indicator’ is a simple tool which is utilised to obtain the correct reading for gravity / distance to the target.

The Mil-Spec version of  is a very robust and precision instrument; it is made from tough grade aluminium, that is anodised in a flat black finish. The Angles are depicted in degrees and are laser engraved onto the body in five degree increments.

The unit is shock proof and resistant to chemicals such as acetone and cleaning solvents. Completely mechanical, there are no batteries or electronics to fail.

More Information:

Weight: 20grm
Diameter: 33
Thickness: 22

Package include:
1x angle indicator
1x Allen key
5x m4 screws

Ways to mount the device:

1. Remove the centre silver screw.

2. Take the unit apart.

3. Install the base to the left or right side your scope / rail mount, to any position suitable for your eye.
When located, tighten the base to the mount with the supplied screws.

4. Insert the silver screw to the lid and insert the center part to the tube, then install everything together.

5. Use a bubble level to keep your rifle level then twist the tube to be in line to 0
Then tighten the silver screw to keep all the parts secured together.

Warning:
Do not over tighten the silver screws as it may damage the unit – just tighten enough to make the parts secure.
