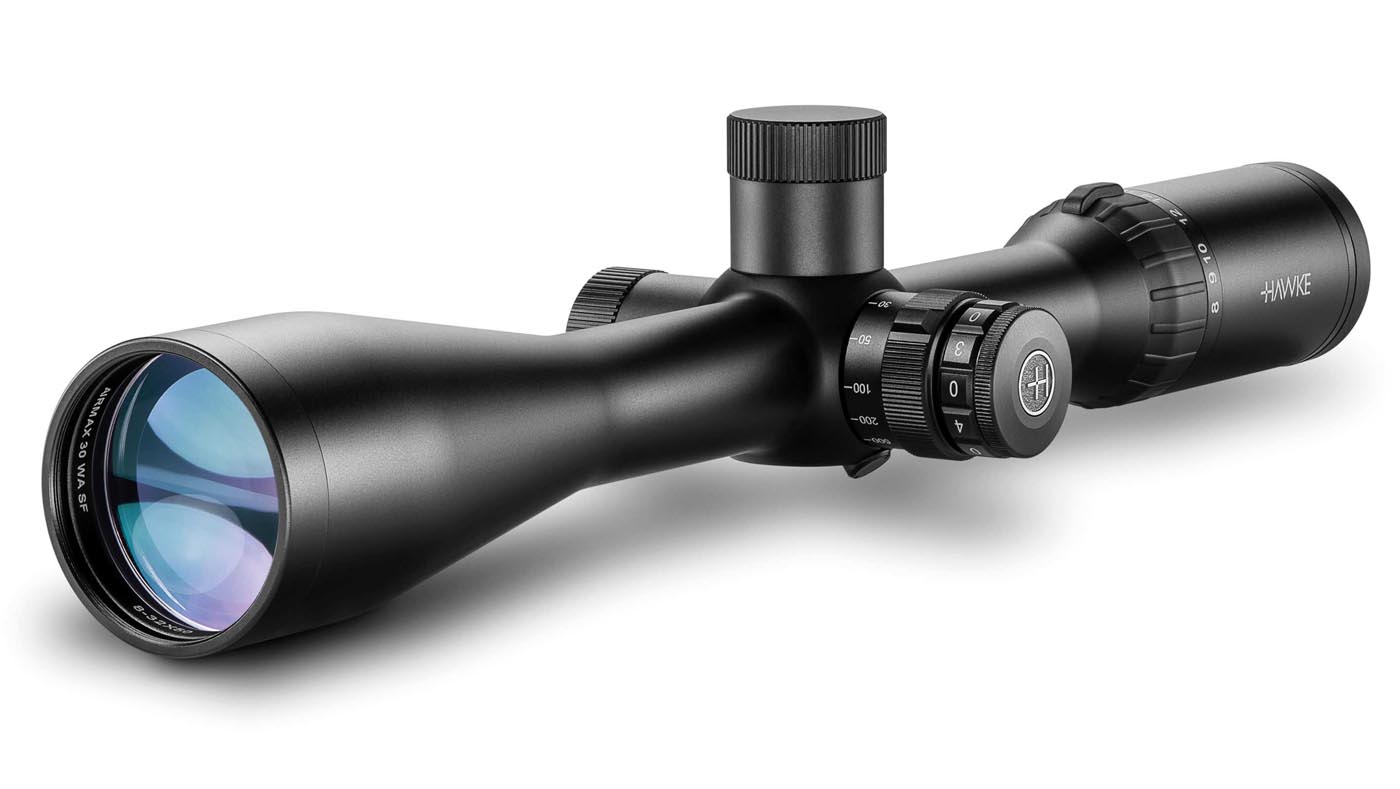

Hawke Airmax 30 WA SF 8-32×50 AMX IR SF Rifle Scope. Specialist scopes designed by airgunners for airgunners! Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.

Hawke Airmax 30 WA SF 8-32×50 AMX IR SF 13 341 Rifle Scope Features:

• Capped Target Turrets
• 30mm Mono-tube chassis
• Wide Angle
• Side Focus
• Illumination
• 16 layer Fully Multi-Coated lenses
• High torque zoom ring
• Fast focus eyebell
• AMX reticle designed for airguns
• All calibre rated
• Nitrogen purged. Shockproof. Waterproof. Fog proof.

AMX Reticle

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

Half Mil Dot spacing on the lower post provides increased aim points for long shots.

The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.

Hawke Airmax 30 WA SF 8-32×50 AMX IR SF 13 341 Rifle Scope Specifications:

Hawke Code: 13341
Magnification:8-32
Scope Tube: 30mm
Reticle: AMX IR
Optical System: System H2
Objective Lens: 50mm
Parallax: Side Focus
Focal Plane: SFP (Second Focal Plane)
Illumination: 6 Levels (Red)
Length: 388mm / 15.3″
Weight: 780g / 27.5oz
Eye relief: 102mm/ 4″
PX/Focus (Error free from):  10yds – ∞ / 9m – ∞
Field of View: 16.1 – 4.0ft @100yds /5.4 – 1.3m @100m
Field of View: 3.1 – 0.8°
Exit Pupil: 6.3 – 1.6mm / 0.25 – 0.06″
Click Value:16 MRAD
Ocular Type: Fast Focus
Power Selector: Rubber Coated Posi-Grip
