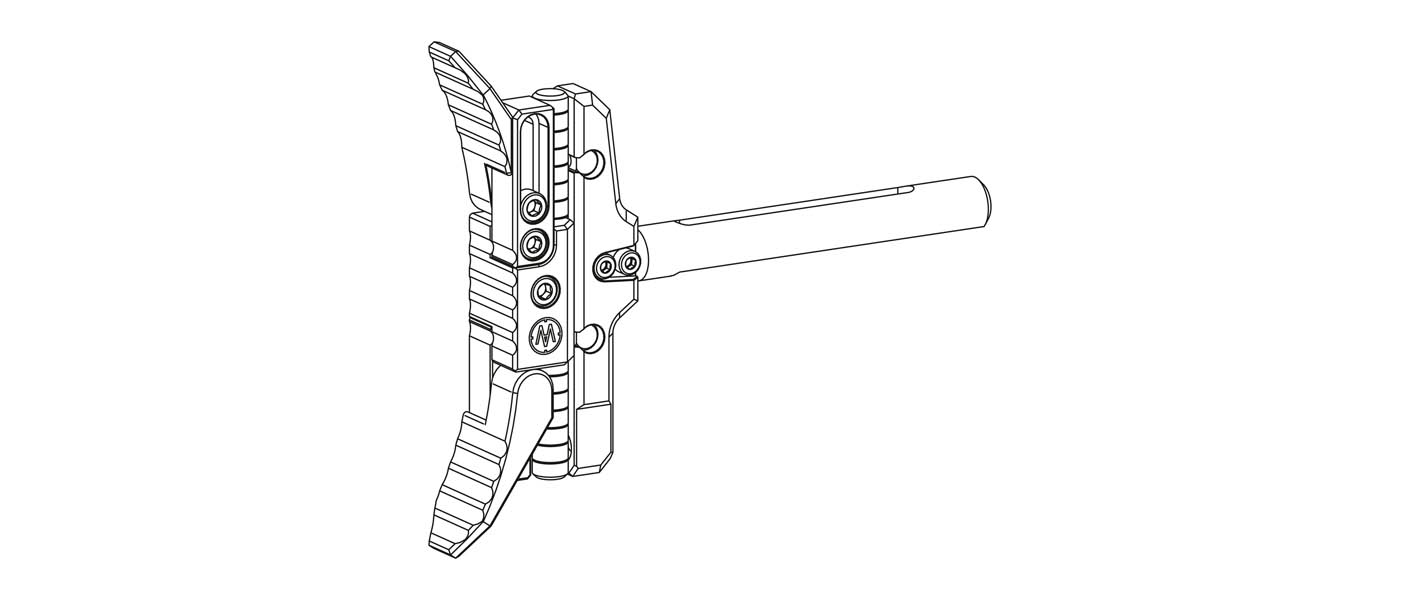

The Airmaks Krait Butt Hook is an FT style butt hook for Krait rifles, chunky solid and just what you need for added rear end stability.

Installation is very simple, for the Krait, simply remove your length of pull thumbscrew and then slide out your original butt plate, slide in the new one and reinstall the thumbscrew.

Airmaks Krait Butt Hook Adjustments

Adjustment of the main vertical angle in relation to the rifle is different for the two versions because of the different mounting mechanism.
Slightly loosen the 3mm bolt rearmost on the mounting rod this is your pivot point, then loosen the forward of the two bolts and once the desired angle is set tighten both bolts to secure

CANT

To apply any cant angle to the main vertical post of the plate, loosen the 4mm allen bolt at the centre just above the AirMaks logo on the right hand side and slide the main plate completely out of the way, this will then allow access to the two 3mm bolts that secure the vertical post, simply loosen both of these, set your desired angle and then tighten them again.

Pivot & Height

Pivot angle and overall height is set using the silver 4mm hex bolt just above the AirMaks Logo, simply loosen this, adjust to your desired height and pivot angle then tighten it to secure the position.

Arm Position

To adjust the height/angle of the arm to suit your shoulder, simply loosen the silver 4mm allen bolt and adjust to your desired position, this must be performed on each arm separately.
